5052 Aluminum Coil

Alloy No.: 5052

Temper: O-H112

Width: 800-2200mm

Thickness: 0.2-6mm

Standard: GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc

Sample Size: A4 Size(free)



5052 Aluminum Coil Introduction:

5052 aluminum coil is an aluminum alloy with good machinability and weldability, containing 2.5% magnesium and 0.25% chromium. It has good corrosion resistance and is especially suitable for industrial applications in the marine sector, and it can be cold worked to increase its hardness.
The common tempering states are 5052 h32 and 5052 h34. The difference between them is mainly in the fatigue resistance. The H34 state is about 8Mpa higher than the H32 state, the H32 is 115MPa, and the H34 is 125Mpa.

Elements Si Cu Mg Zn Mn Cr Fe Other Al
Contents 0.25 0.1 2.2-2.8 0.10 0.10 0.15-0.35 0.4 0.15 rests

5052 Aluminum Coil Feature:

Excellent rust resistance;

Excellent thermal conductivity and low density;

It is easy to color and can be painted;

Good weldability, poor machinability, polishing;

High fatigue resistance, good plasticity and corrosion resistance;

Certain tensile strength, yield strength, elongation, impact resistance and other properties;

5052 Aluminum Coil Applications:

Ship construction, such as decks, sides, bottom plates, wheelhouses, portholes, masts, etc.

Commonly used in car covers and parts, truck shock absorbers, etc.

Aluminum alloy for can lids, beer with internal pressure, carbonated beverage cans, juice cans without internal pressure,etc.

Stamping parts, instruments and meters, street lamp sockets, rivets, hardware, electrical enclosures on vehicles or ships,etc.

Fuel tank or oil pipe on aircraft, aluminum alloy material for aerospace,etc.

Aluminum doors and windows Umbrella racks, shutters, special materials for transportation equipment, architectural decoration,etc.

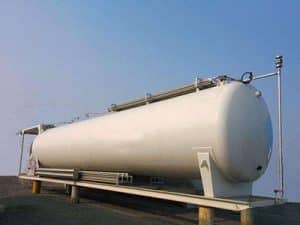

storage tanks
storage tanks

aircraft fuel tanks
aircraft fuel tanks

Curtain wall panel
Curtain wall panel


Shipping and Packing Information:

1. Cover the fumigation chapter.
2. Place 20 packs of desiccant per carton.
3. Galvanized steel strip, coated cardboard package to prevent rust.
4. Pine wood bottom bracket is supported by glued bottom plate to maintain the flatness of the aluminum plate.

Aluminum coil packaging

Aluminum coil packaging

Aluminum coil packaging

Aluminum coil packaging



Product line:

Product Catalogue:

Products Alloy No. Temper Thickness(mm) Width(mm)
1000series 1050/1060/1100/1235/1200/1145 All Tempers 0.2-6 Under2200
3000series 3003/3105 All Tempers 0.2-6 Under2200
5000series 5005/5052/5083/5086/5182/5754/5454/5A06/5A05/5251 All Tempers 0.2-6 Under2200
6000series 6061/6082/6063 F/TX 0.2-6 Under2200
7000series 7075/7050 F/TX 0.2-6 Under2200
8000series 8011 All Tempers 0.006-6 Under2200

Types of Checkered Plates:

Stucco Embossed Aluminium Sheet

Diamond aluminum plate

5 bar aluminum plate

Color Coating Type:



Q: How long can I receive my goods?

A: It depends on the products you ordered. Generally, it needs 30-40 days.If products is stock , about 7-10days can delivery after received deposit.We have 3200 workers to manufacture aluminium products. We have complete production lines for meeting your needs of products quality and production speed to make sure that our products can get to you faster.


Q: What are your payment methods?

A: TT or 100% irrevocable L/C at sight.


Q: What is your MOQ?

A: Our MOQ is based on the alloy number and the thickness and width of the aluminum sheet.1000 series MOQ 5tons.


Q: How do you ship the goods and how long does it take to arrive ?

A : We usually ship by DHL , UPS , Fedex or TNT for sample. It usually takes 3-5 days to arrive . Seashipping for mass products.


Q: Are your aluminium products quality reliable?

A : We apply professional and advanced equipment for processing aluminium products. These equipment are top-class at home and abroad. What’s more, our factory has complete equipment configurations for fine machining. And we have precise equipment for testing products quality. Thus, the quality of end products can be promised.


1.100% will reply you within 24 hours.

2.Our output is stable and continuous, with an acceptable range of 10 tons to 10,000 tons.

3.The delivery schedule is very stable, and the transportation information will be reported to you in real time.

4.The price is favorable, and a certain discount can be given under appropriate circumstances to support the customer’s business.

5.Reliable quality, stable production, timely after-sales service, welcome your consultation.

Lomi alu mainly sell 1-8 series aluminum plates,diamond aluminum plate and aluminum checkered plate.Have the best aluminium sheet price for sale!
