5005 Aluminum Coil

Alloy No.: 5005

Temper: O-H112

Width: 800-2200mm

Thickness: 0.2-6mm

Standard: GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc

Sample Size: A4 Size(free)



5005 Aluminum Coil Introduction:

The performance of 5005 aluminum coil and 5005 aluminum plate is the same, but the appearance of the product is different. 5005 aluminum coil is an aluminum-magnesium alloy, which has good formability in a softer state, and also has high welding strength, workability and corrosion resistance, and is usually used in applications that require anodizing. It is roughly the same application as 1100 aluminum coil and 3003 aluminum coil.

Material Temper Tensile Strength (N/mm²) Yield Strength (N/mm²) Elongation on 50mm (%)
0.5 mm 0.8 mm 1.3 mm 2.6mm
5005 0 95-145 18 20 21 22
5005 H12 125-170 80 4 5 6 8
5005 H14 145-185 100 3 3 5 6
5005 H18 185 min 165 1 2 3 3


5005 Aluminum Coil Feature:

Moderate toughness

Good corrosion resistance

Low density

High tensile strength

Good elongation

High welding strength and workability

Good anodizing effect

Low temperature brittleness will not occur

Strong formability and fatigue resistance

5005 Aluminum Coil Applications:
  • Widely used to make conductors, cookware, instrument panels, floors, enclosures, roofs, cladding, corrugated boards.
  • Processing and storage equipment for kitchenware, food and chemical products;
  • Aircraft fuel tanks, oil pipes, rivets, wires, home appliances, storage tanks;
  • Can lids, body panels, steering plates, stiffeners, brackets and other components, signs, road signs and nameplates;
  • Manufacture of trucks, towers, ships, trains, furniture, HVAC equipment, machine parts, precision machining of pipes, bars, profiles, sheet metal.

pressure cooker
pressure cooker

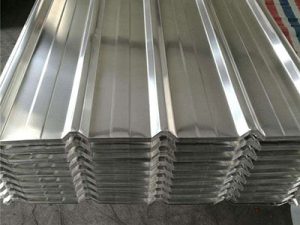

corrugated aluminium sheet
corrugated aluminium sheet

aluminium sheet metal
aluminium sheet metal


Shipping and Packing Information:

1. Cover the fumigation chapter.
2. Place 20 packs of desiccant per carton.
3. Galvanized steel strip, coated cardboard package to prevent rust.
4. Pine wood bottom bracket is supported by glued bottom plate to maintain the flatness of the aluminum plate.

Aluminum coil packaging

Aluminum coil packaging

Aluminum coil packaging

Aluminum coil packaging



Product line:

Product Catalogue:

Products Alloy No. Temper Thickness(mm) Width(mm)
1000series 1050/1060/1100/1235/1200/1145 All Tempers 0.2-6 Under2200
3000series 3003/3105 All Tempers 0.2-6 Under2200
5000series 5005/5052/5083/5086/5182/5754/5454/5A06/5A05/5251 All Tempers 0.2-6 Under2200
6000series 6061/6082/6063 F/TX 0.2-6 Under2200
7000series 7075/7050 F/TX 0.2-6 Under2200
8000series 8011 All Tempers 0.006-6 Under2200

Types of Checkered Plates:

Stucco Embossed Aluminium Sheet

Diamond aluminum plate

5 bar aluminum plate

Color Coating Type:



Q: How long can I receive my goods?

A: It depends on the products you ordered. Generally, it needs 30-40 days.If products is stock , about 7-10days can delivery after received deposit.We have 3200 workers to manufacture aluminium products. We have complete production lines for meeting your needs of products quality and production speed to make sure that our products can get to you faster.


Q: What are your payment methods?

A: TT or 100% irrevocable L/C at sight.


Q: What is your MOQ?

A: Our MOQ is based on the alloy number and the thickness and width of the aluminum sheet.1000 series MOQ 5tons.


Q: How do you ship the goods and how long does it take to arrive ?

A : We usually ship by DHL , UPS , Fedex or TNT for sample. It usually takes 3-5 days to arrive . Seashipping for mass products.


Q: Are your aluminium products quality reliable?

A : We apply professional and advanced equipment for processing aluminium products. These equipment are top-class at home and abroad. What’s more, our factory has complete equipment configurations for fine machining. And we have precise equipment for testing products quality. Thus, the quality of end products can be promised.
