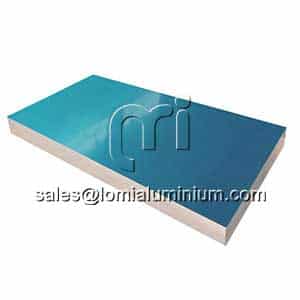

6063 Aluminium Sheet

Alloy No.: 6063

Temper: O-H112

Width: 800-2200mm

Thickness: 0.2-40mm

Standard: GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc

Sample Size: A4 Size(free)



6063 Aluminium Sheet Iontroduction:

6063 aluminium sheet is part of the 6000 series of aluminum sheets, which is an Al-Mg-Si alloy, also commonly referred to as an aircraft grade aluminum alloy, similar to the HE9 aluminum alloy from the U.K. Mg and Si are the main alloying elements. The percentages of Mg and Si are different and the properties are different. The higher the Mg content, the greater the amount of Mg2Si, the greater the heat treatment strengthening effect; increase the Si content, the alloy grain becomes finer, the metal fluidity increases, the casting performance becomes better, and the heat treatment strengthening effect increases.
The common tempered states of 6063 aluminum sheet are 6063 O, 6063 T4, 6063 T6 and 6063 T651. 6063 T651 aluminum alloy sheet is stretched on the basis of tempering of T6, eliminating the internal stress and thus more suitable for processing.

Elements Si Fe Cu Mn Mg Cr Zn Ti Others Al
Content (max) 0.60 0.35 0.10 0.10 0.90 0.10 0.10 0.10 0.15 Remains

6063 Aluminium Sheet Feature:

6063 aluminum plate has medium strength, strong corrosion resistance, no tendency of stress corrosion cracking; and good tensile strength and yield strength at different temperatures, large elongation, etc.
The surface of 6063 aluminum alloy plate is smooth and flat, easy to weld, very practical for gas welding, electric arc welding, spot welding and fillet welding. Moreover, it is easy to polish and has good anodic oxidation effect.

6063 Aluminum Sheet Application:

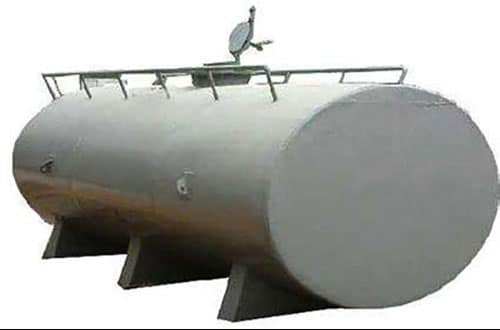

6063 aluminum alloy is mainly used for manufacturing the overall contour of bodywork and the bodywork of tanker trucks. Aluminum body has the advantages of light weight, heat resistance, good printing effect and recyclability.
6063 aluminum sheet is widely used because of its good plasticity, moderate heat treatment strength, good welding performance, and brilliant surface color after anodizing. It is used for construction profiles, irrigation pipes, tubes, bars, vehicles, benches, brackets, furniture, elevators, fences, etc.
6063 aluminum alloy is widely used in the construction of aluminum doors and windows, curtain walls, electronic components, and various durable consumer products.


Product line:

Product Catalogue:

Products Alloy No. Temper Thickness(mm) Width(mm)
1000series 1050/1060/1100/1235/1200/1145 All Tempers 0.2-300 Under2200
3000series 3003/3105 All Tempers 0.2-300 Under2200
5000series 5005/5052/5083/5086/5182/5754/5454/5A06/5A05/5251 All Tempers 0.2-300 Under2200
6000series 6061/6082/6063 F/TX 0.2-300 Under2200
7000series 7075/7050 F/TX 0.2-300 Under2200
8000series 8011 All Tempers 0.006-0.2 Under2200

Types of Checkered Plates:

Stucco Embossed Aluminium Sheet

Diamond aluminum plate

5 bar aluminum plate

Color Coating Type:



1. Cover the fumigation chapter.
2. Place 20 packs of desiccant per carton.
3. Galvanized steel strip, coated cardboard package to prevent rust.
4. Pine wood bottom bracket is supported by glued bottom plate to maintain the flatness of the aluminum plate.

Aluminum plate packaging

Aluminum plate packaging

Aluminum coil horizontal packaging

Aluminum coil vertical packaging

Q: How long can I receive my goods?

A: It depends on the products you ordered. Generally, it needs 30-40 days.If products is stock , about 7-10days can delivery after received deposit.
We have 3200 workers to manufacture aluminium products. We have complete production lines for meeting your needs of products quality and production speed to make sure that our products can get to you faster.


Q: What are your payment methods?

A: TT or 100% irrevocable L/C at sight.


Q:What is your MOQ?

A: Our MOQ is based on the alloy number and the thickness and width of the aluminum sheet.1000 series MOQ 5tons.


Q4 . How do you ship the goods and how long does it take to arrive ?

A : We usually ship by DHL , UPS , Fedex or TNT for sample. It usually takes 3-5 days to arrive . Seashipping for mass products.


Q: Are your aluminium products quality reliable?

A : We apply professional and advanced equipment for processing aluminium products. These equipment are top-class at home and abroad. What’s more, our factory has complete equipment configurations for fine machining. And we have precise equipment for testing products quality. Thus, the quality of end products can be promised.
