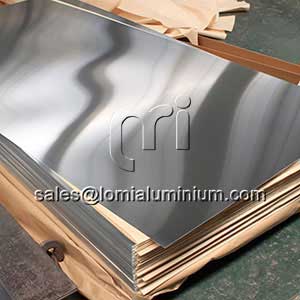

3105 Aluminum Sheet

Alloy No.: 3105

Temper: O-H112

Width: 800-2200mm

Thickness: 0.2-300mm

Standard: GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc

Sample Size: A4 Size(free)



What is 3105 aluminum sheet?

3105 Aluminum Sheet Introduction:

3105 aluminum belongs to 3 series aluminium alloy, which contains 98% pure aluminium and small amount of Cu Mg, Mn and Si. therefore, the electrical conductivity is good, with 41% electrical conductivity; it also has good formability and weldability. 3105 aluminium sheet all the conventional process of forming characteristics and tempering state is basically irrelevant; 3105 aluminium sheet has good cold working characteristics, but does not respond to heat treatment. 3105 aluminum sheet is light in weight It has a smooth surface and is widely used in many fields.

Temper Specified thickness   mm Rm                            Mpa Rp0.2                                   Mpa Elongation         min.           % Bend radiusa Hardness HBWa
over up to min. max. min. max. A50mm A 180° 90°
Fa ≥2.5 80 100
O/H111 0.2 0.5 100 155 40   14   0 t   29
0.5 1.5 100 155 40   15   0 t   29
1.5 3 100 155 40   17   0.5 t   29
H12 0.2 0.5 130 180 105   3   1.5 t   41
0.5 1.5 130 180 105   4   1.5 t   41
1.5 3 130 180 105   4   1.5 t   41
H14 0.2 0.5 150 200 130   2   2.5 t   48
0.5 1.5 150 200 130   2   2.5 t   48
1.5 3 150 200 130   2   2.5 t   48
H16 0.2 0.5 175 225 160   1       56
0.5 1.5 175 225 160   2       56
1.5 3 175 225 160   2       56
H18 0.2 0.5 195   180   1       62
0.5 1.5 195   180   1       62
1.5 3 195   180   1       62
3105 Aluminium Sheet Feature:

The corrosion resistance of 3105 aluminium sheet is excellent not only in air but also in dilute acid environment, so it is used in many special environments. It is also good in hardness, about 10%-20% harder than pure aluminium sheet, and can be enhanced by cold working treatment.

3105 Aluminium Sheet Applications:

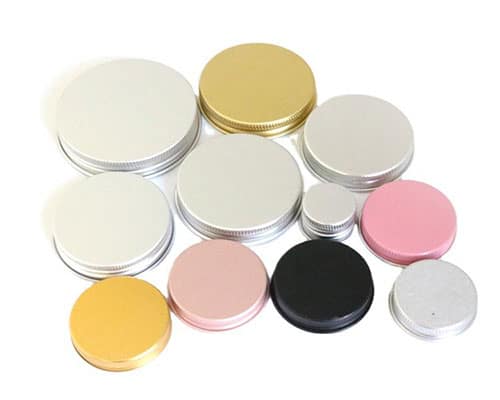

Bottle cap material, 3105 aluminium sheet has excellent deep punching performance, which can meet the design of bottle mouth of different wine products.

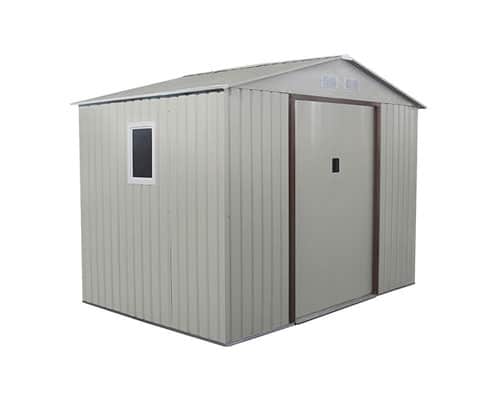

Mobile panel house, 3105 aluminium sheet is very suitable for the wall of mobile panel house because it can easily form a dense aluminum oxide protective film on the surface even in a very humid environment, which has strong corrosion resistance. It can quickly form a new protective film when there are scratches or other damages on the surface of the film.

Color coating, 3105 aluminium sheet can be used to make color coated aluminium substrates, rain gear, lamp holders, blinds, etc. After anodic oxidation processing, the surface of 3105 aluminium sheet can be coated with rich colors, and it is not easy to deform, and the color stays for a long time.

Product line:

Product Catalogue:

Products Alloy No. Temper Thickness(mm) Width(mm)
1000series 1050/1060/1100/1235/1200/1145 All Tempers 0.2-300 Under2200
3000series 3003/3105 All Tempers 0.2-300 Under2200
5000series 5005/5052/5083/5086/5182/5754/5454/5A06/5A05/5251 All Tempers 0.2-300 Under2200
6000series 6061/6082/6063 F/TX 0.2-300 Under2200
7000series 7075/7050 F/TX 0.2-300 Under2200
8000series 8011 All Tempers 0.006-0.2 Under2200

Types of Checkered Plates:

Stucco Embossed Aluminium Sheet

Diamond aluminum plate

5 bar aluminum plate

Color Coating Type:



1. Cover the fumigation chapter.
2. Place 20 packs of desiccant per carton.
3. Galvanized steel strip, coated cardboard package to prevent rust.
4. Pine wood bottom bracket is supported by glued bottom plate to maintain the flatness of the aluminum plate.

Aluminum plate packaging

Aluminum plate packaging

Aluminum coil horizontal packaging

Aluminum coil vertical packaging

Q: How long can I receive my goods?

A: It depends on the products you ordered. Generally, it needs 30-40 days.If products is stock , about 7-10days can delivery after received deposit.
We have 3200 workers to manufacture aluminium products. We have complete production lines for meeting your needs of products quality and production speed to make sure that our products can get to you faster.


Q: What are your payment methods?

A: TT or 100% irrevocable L/C at sight.


Q: What is your MOQ?

A: Our MOQ is based on the alloy number and the thickness and width of the aluminum sheet.1000 series MOQ 5tons.


Q: How do you ship the goods and how long does it take to arrive ?

A : We usually ship by DHL , UPS , Fedex or TNT for sample. It usually takes 3-5 days to arrive . Seashipping for mass products.


Q: Are your aluminium products quality reliable?

A : We apply professional and advanced equipment for processing aluminium products. These equipment are top-class at home and abroad. What’s more, our factory has complete equipment configurations for fine machining. And we have precise equipment for testing products quality. Thus, the quality of end products can be promised.
